For installation of your jamb. London chimney piece

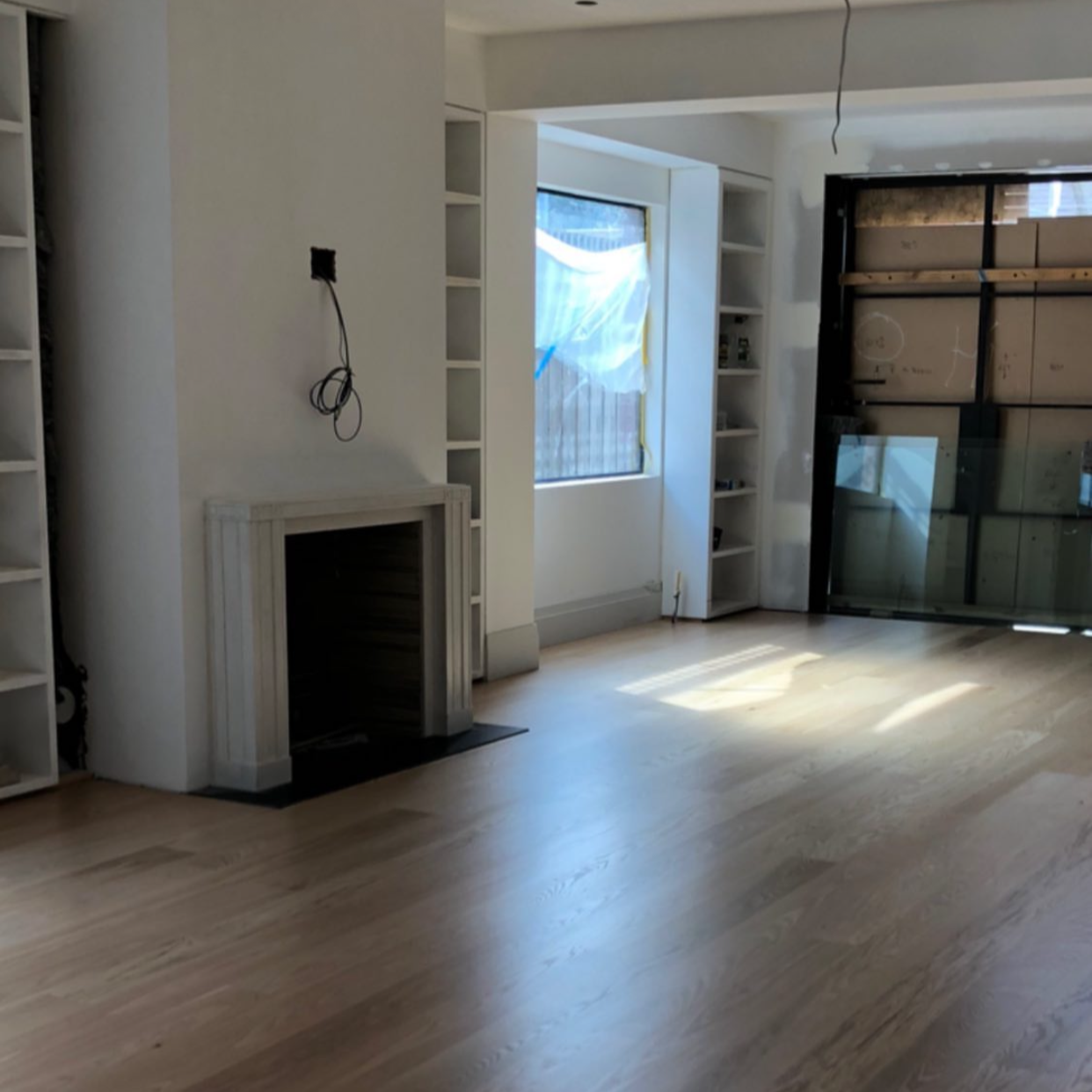

Recent project: South Yarra
Demolition of existing brick chimney

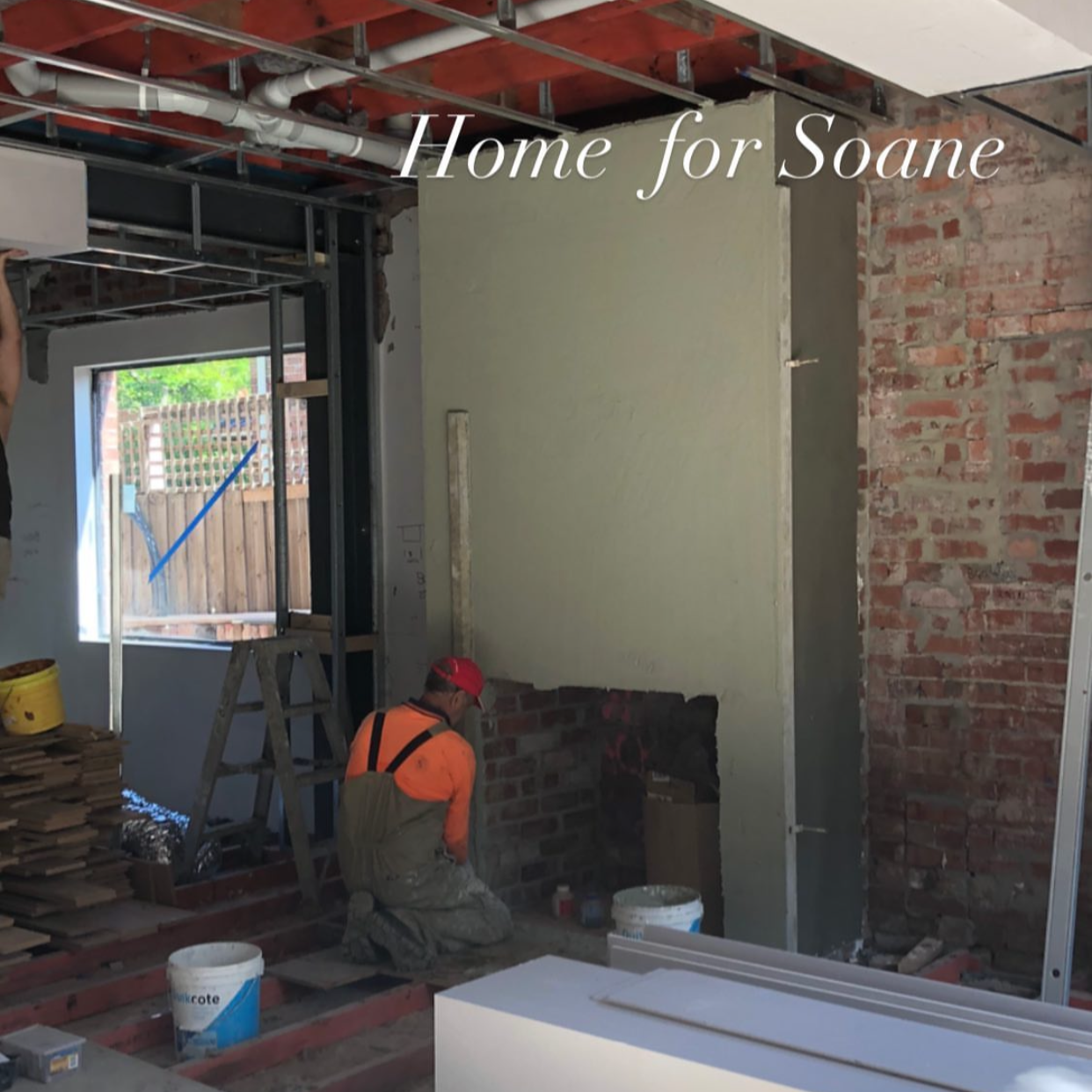

Rebuild of brick chimney breast on alternate wall

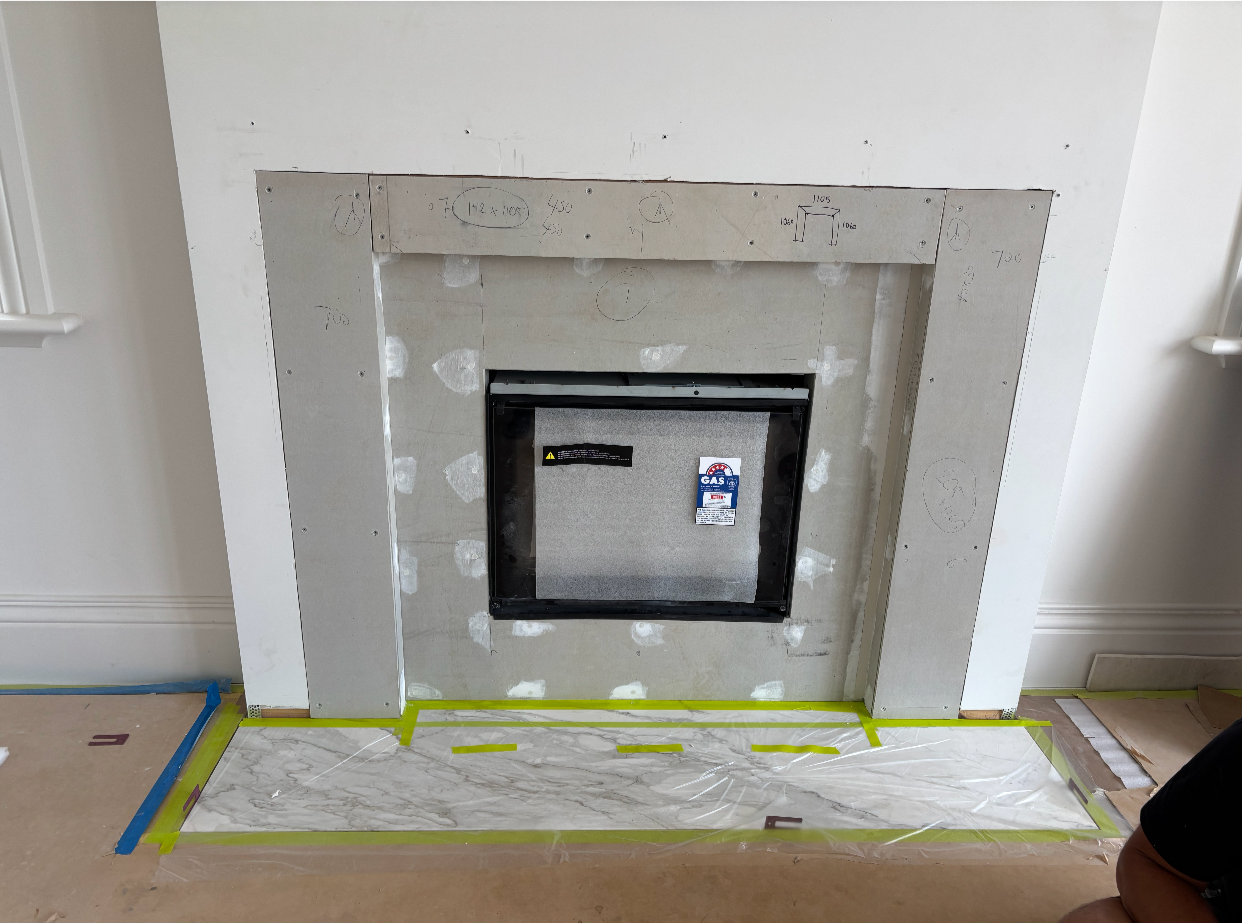

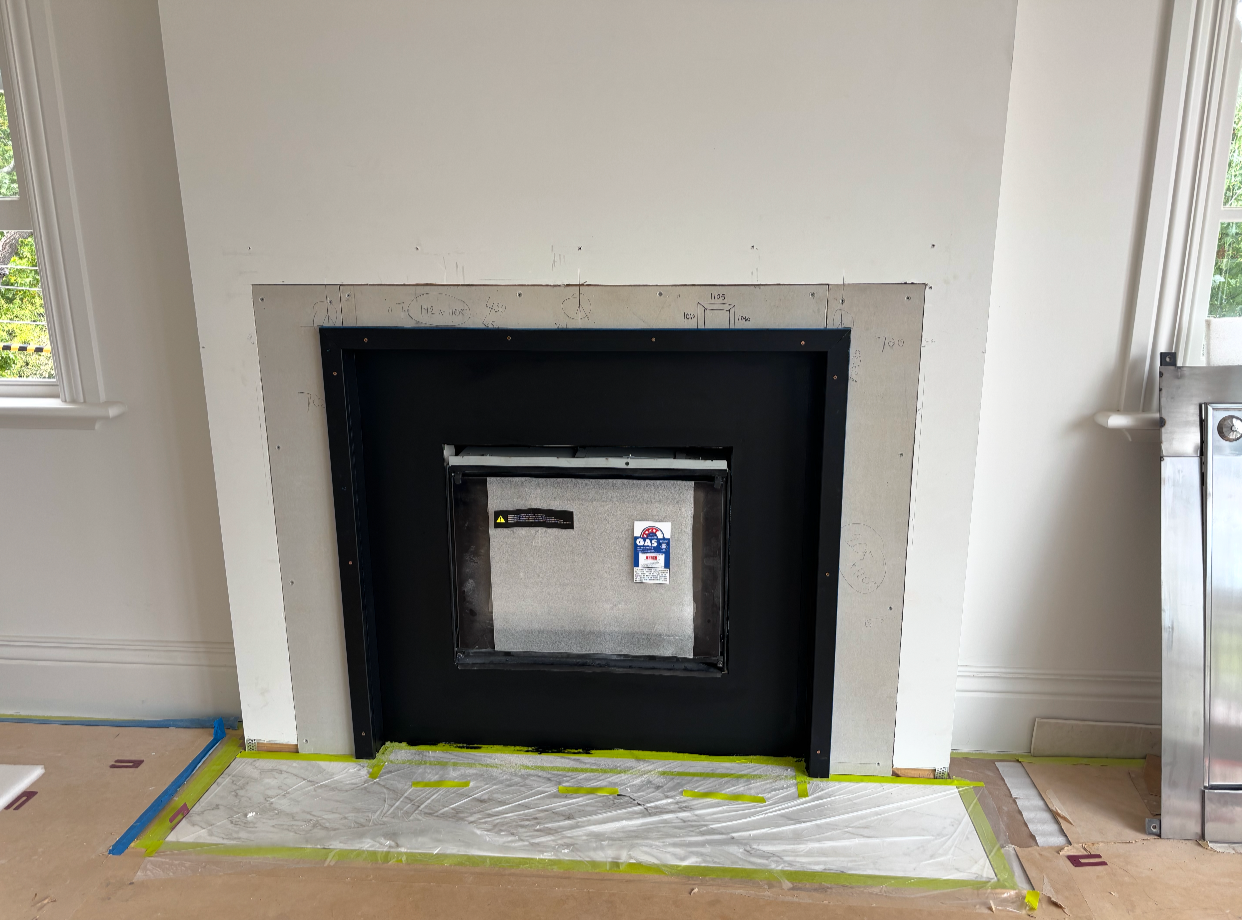

Installation of gas fire

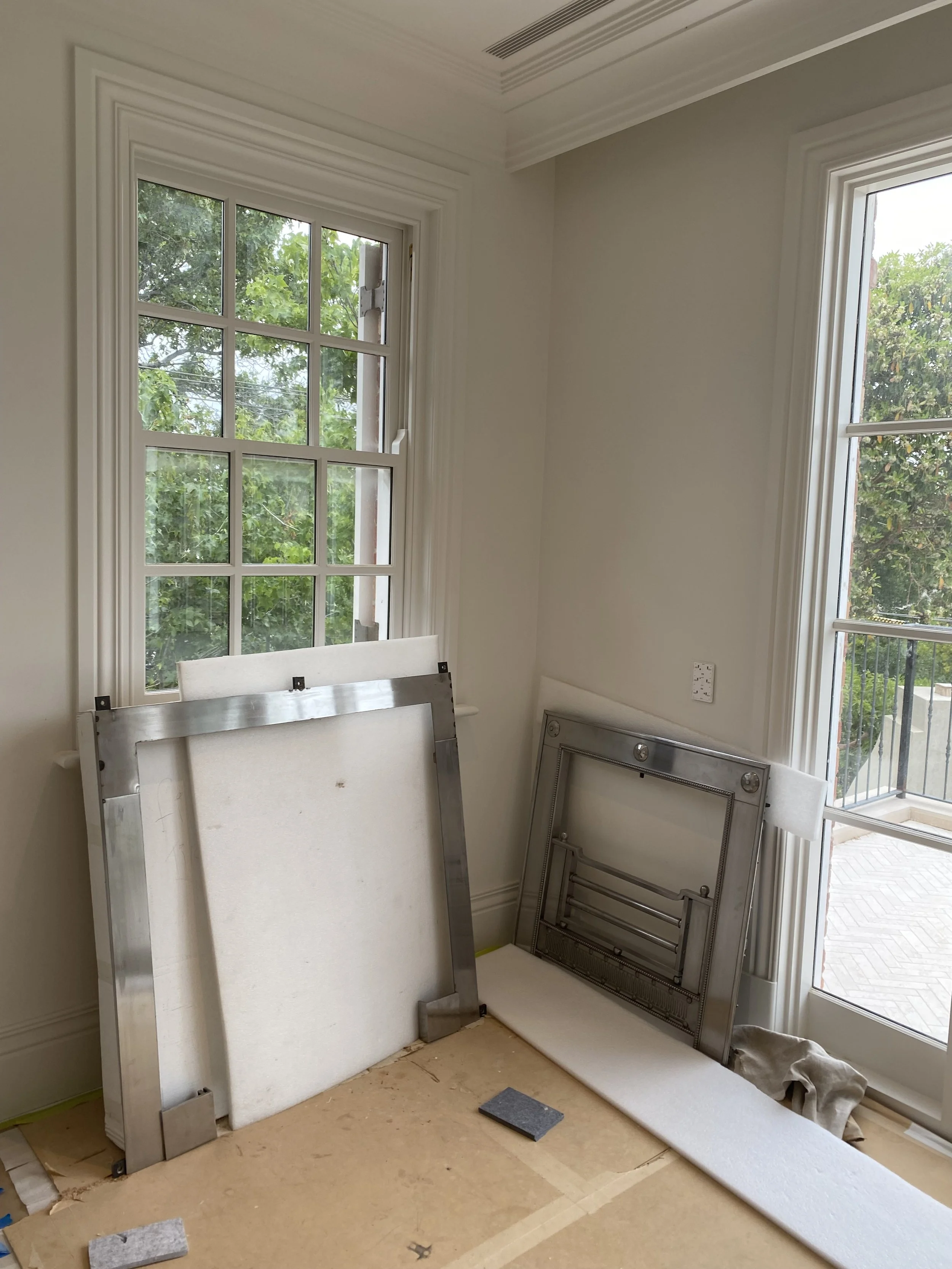

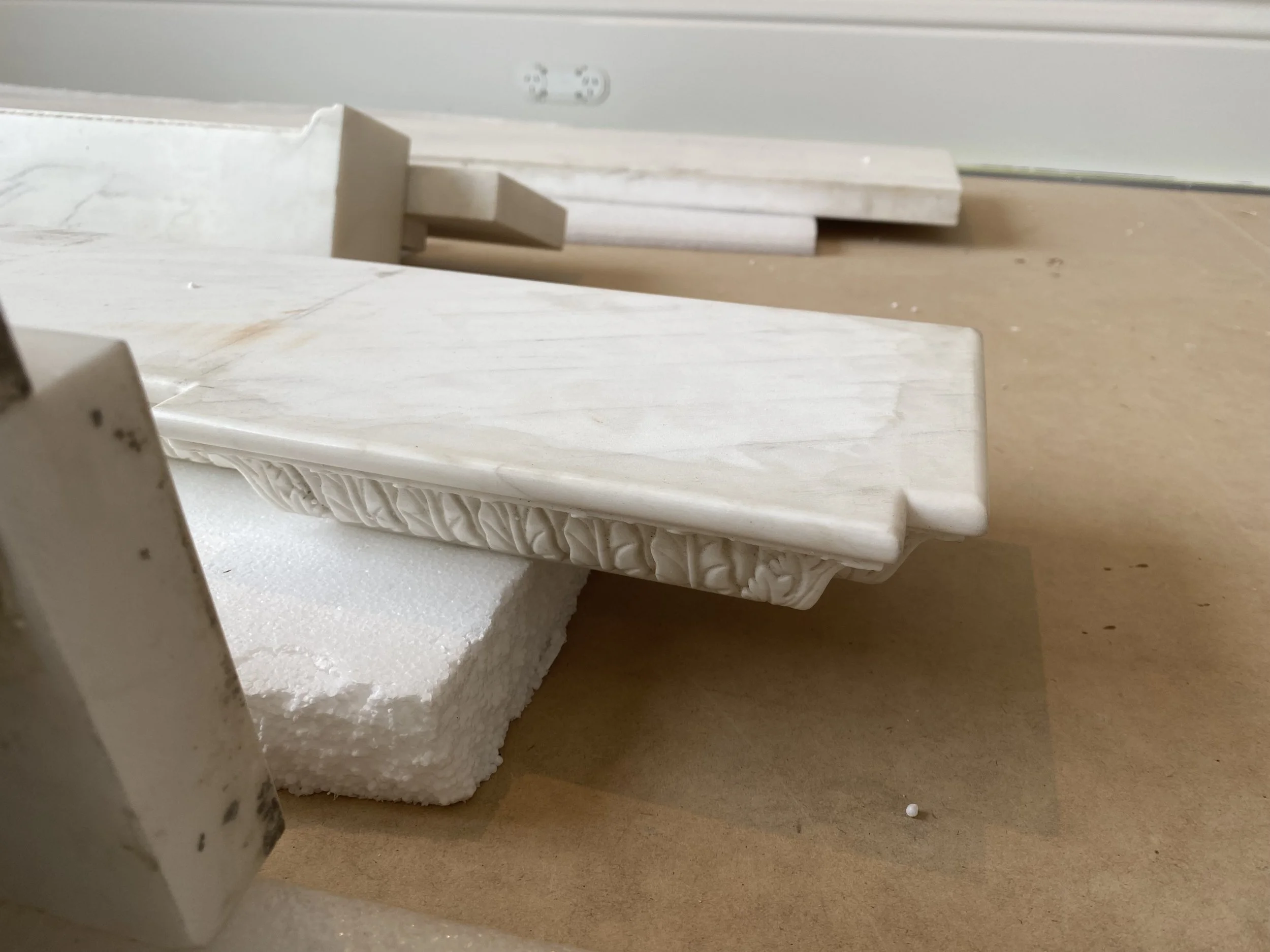

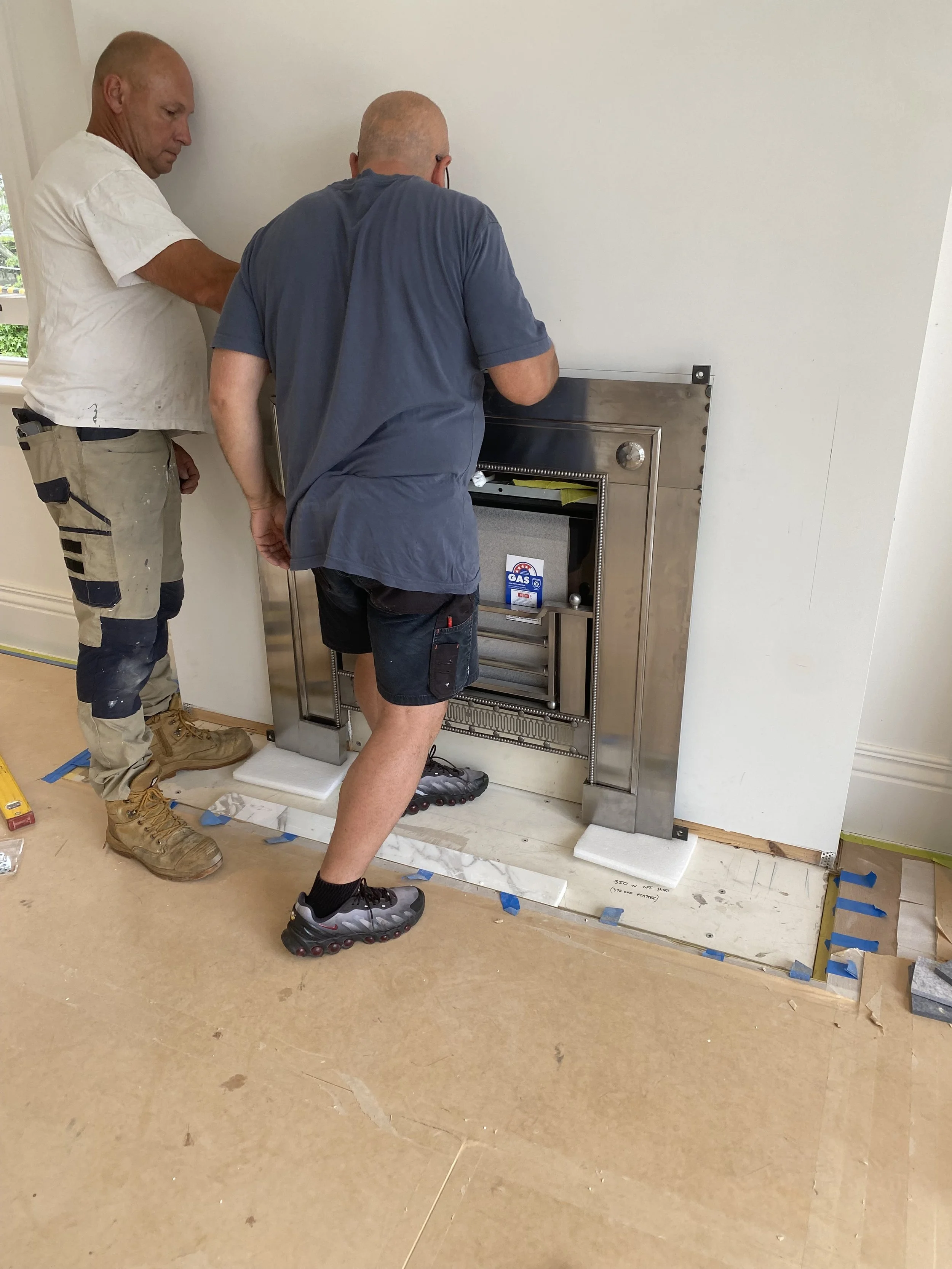

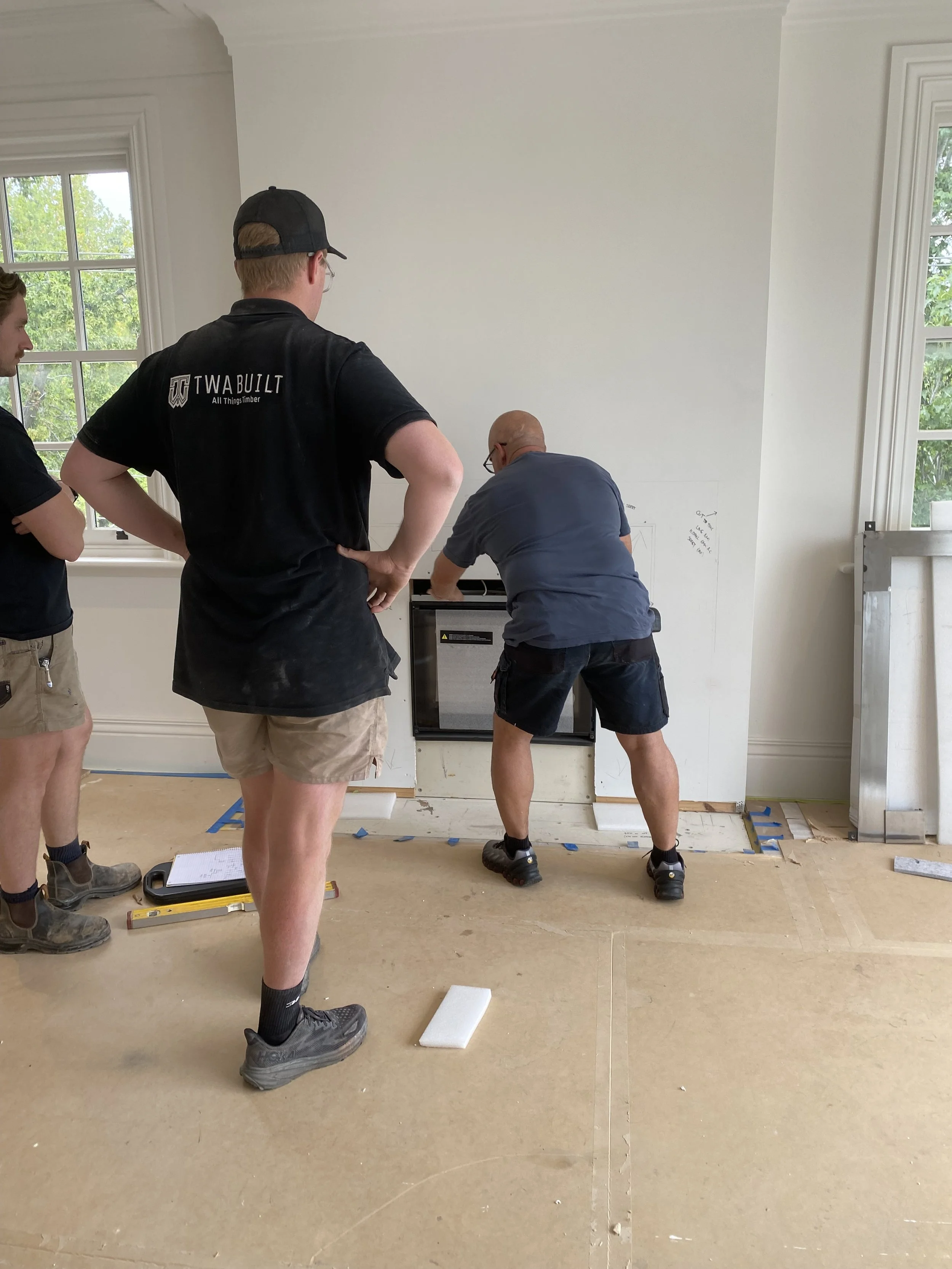

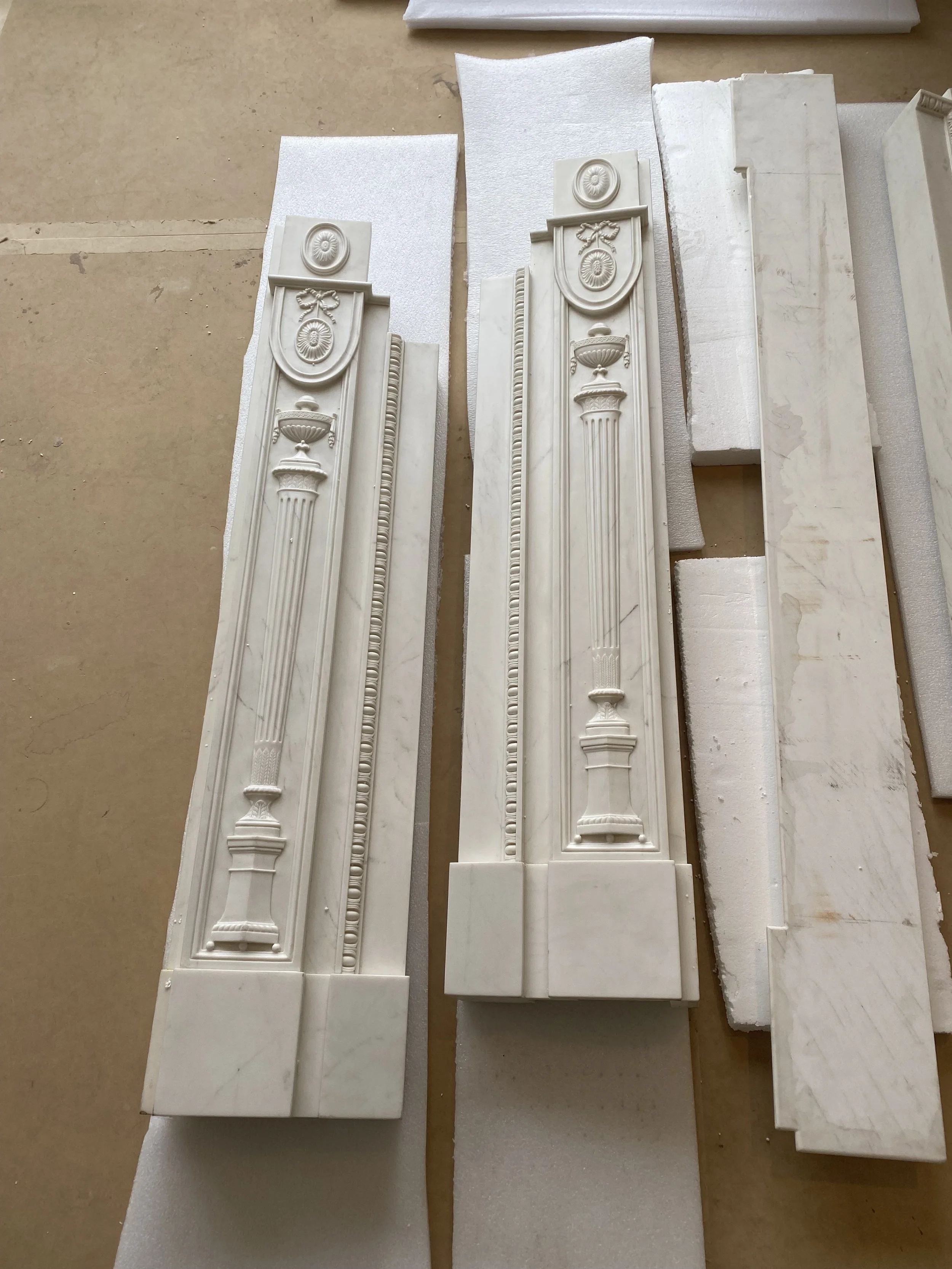

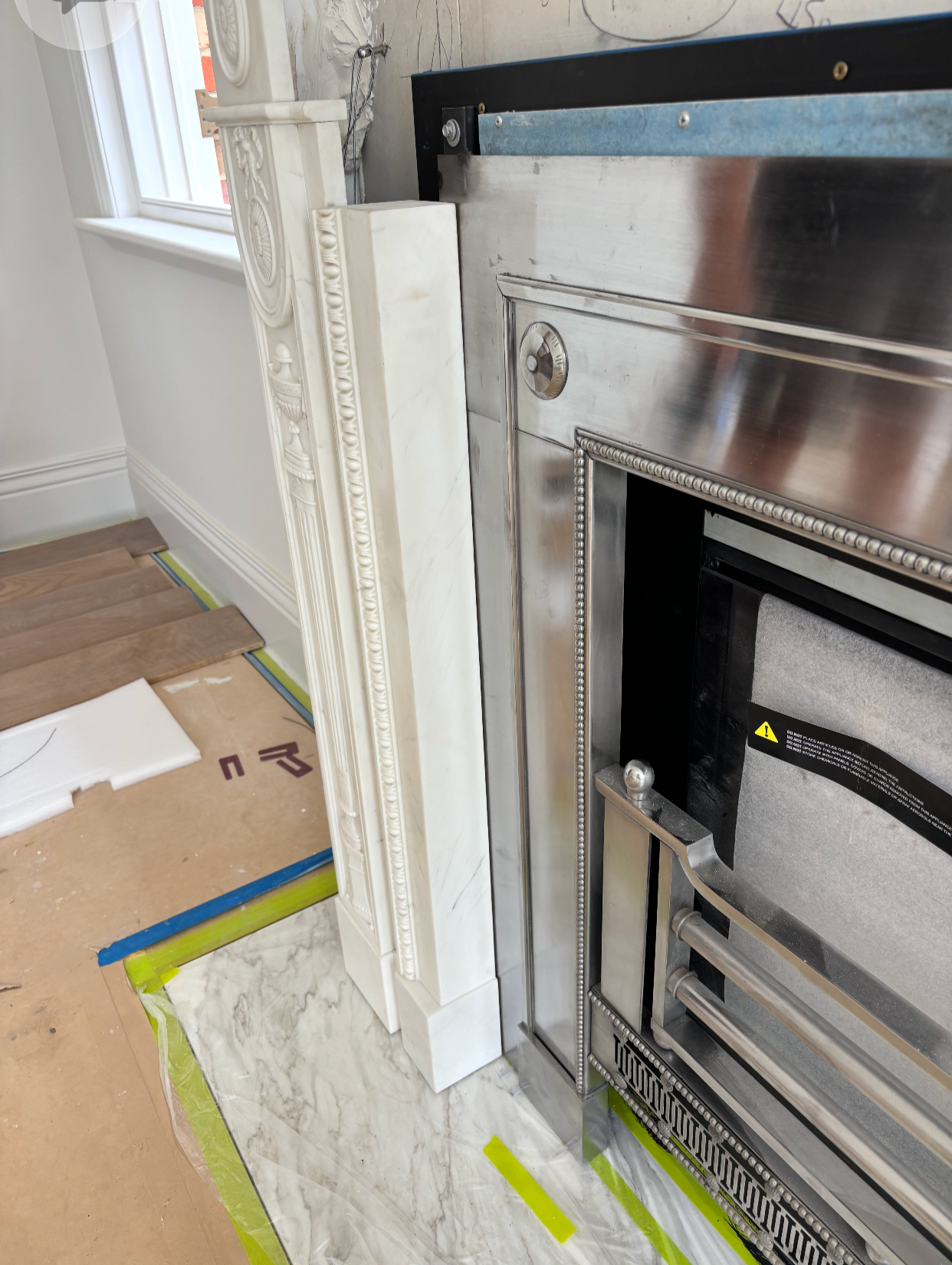

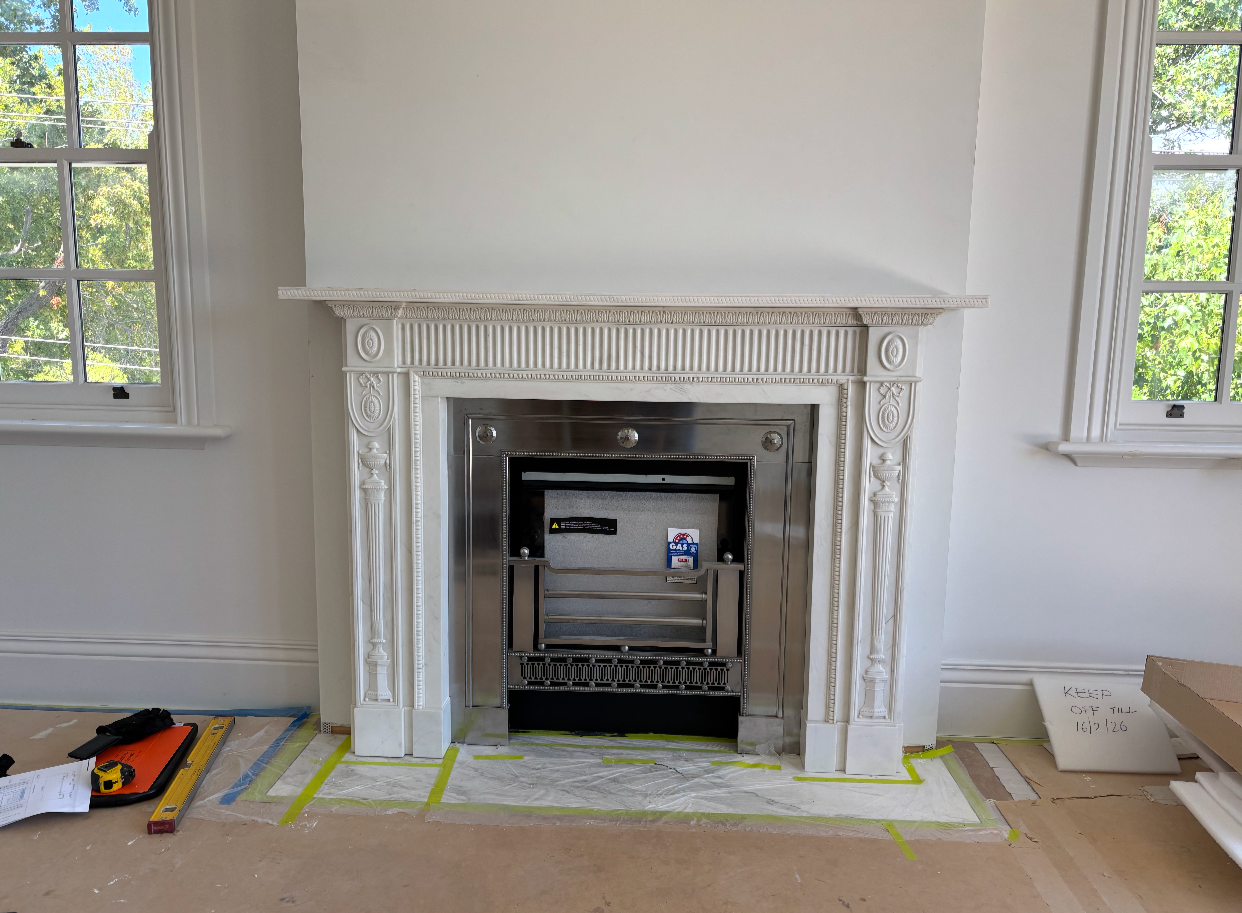

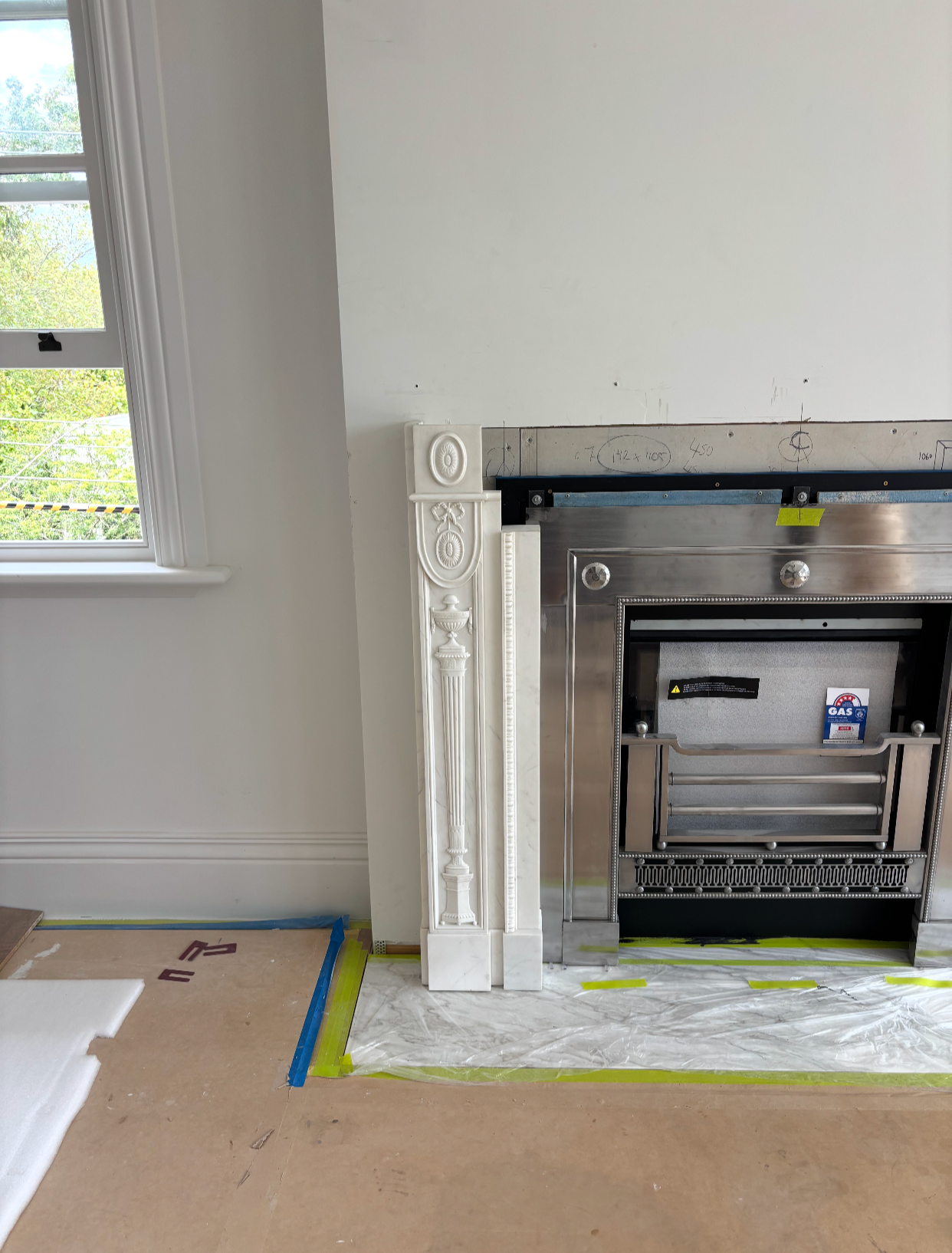

Fitting of Jamb. London - Soane chimney piece
Work carried out by Mr Axiotis ~ licensed builder.
Arthur Axiotis — arthur.axiotis@gmail.com
Howe crescent

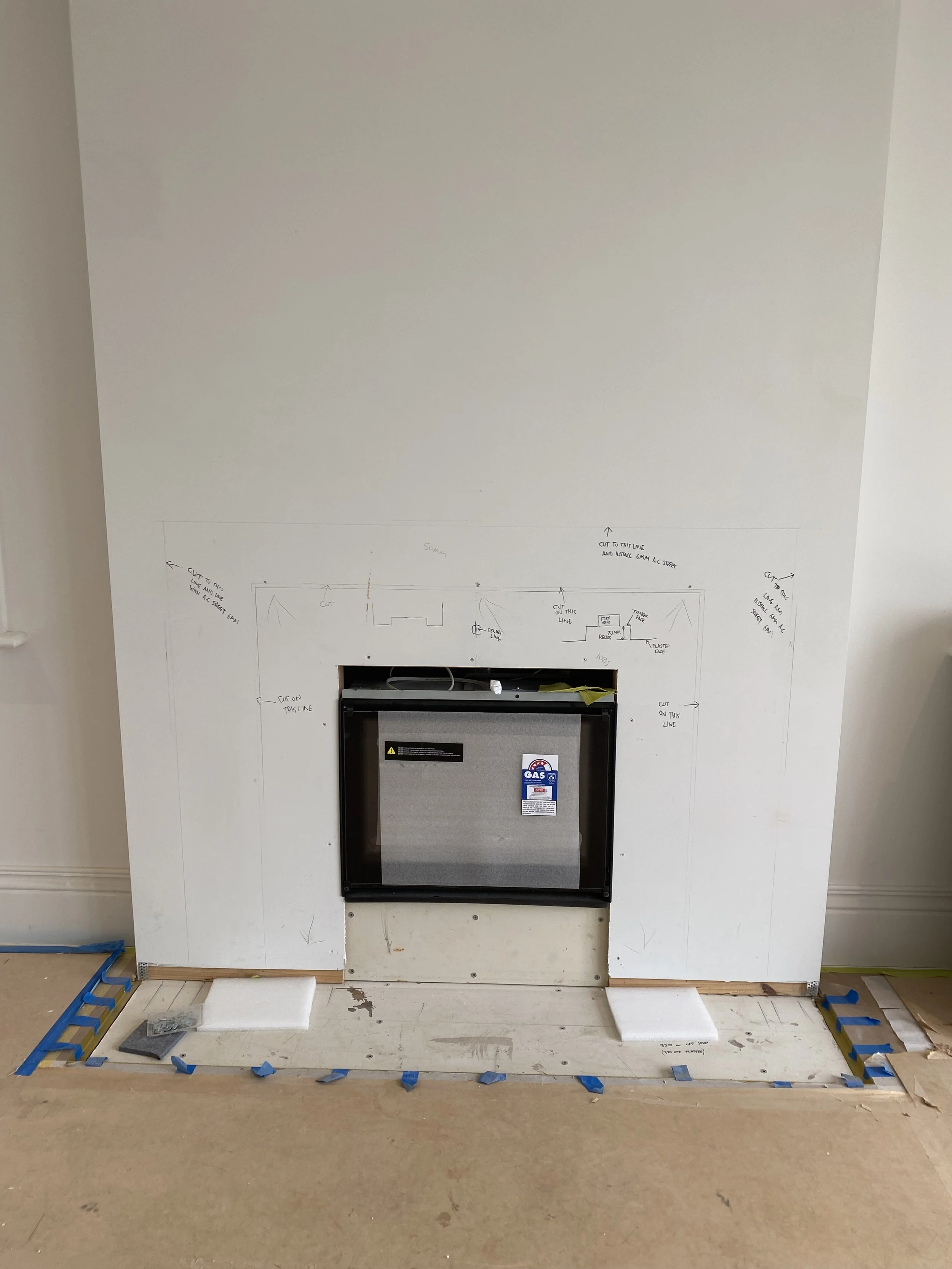

stages to prepare fireplace for chimney piece install

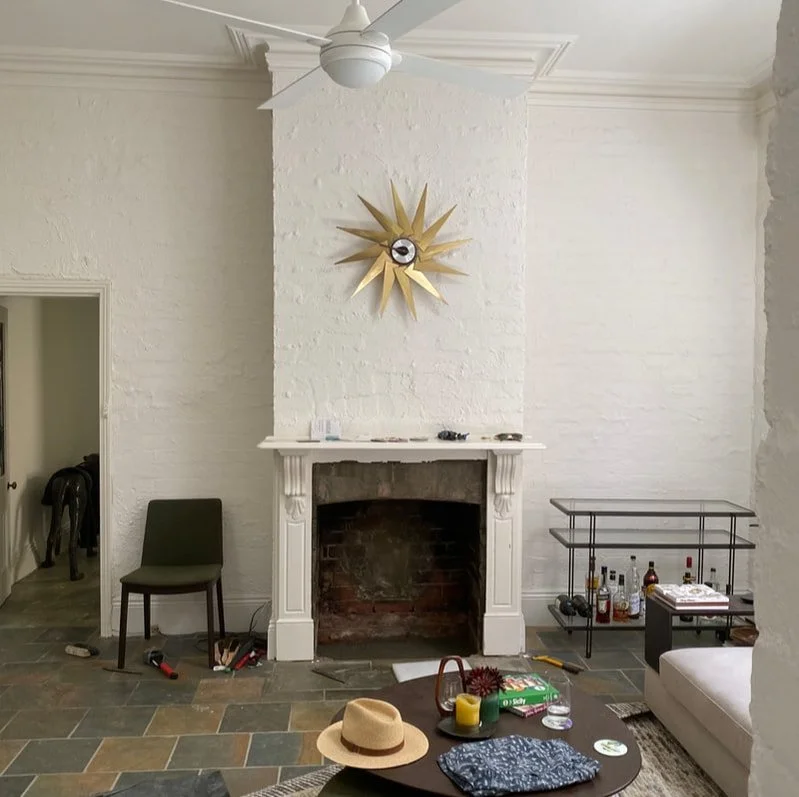

a bricked up fire place.
this install also shows the upgrade from arch fire to the more generous square shape.

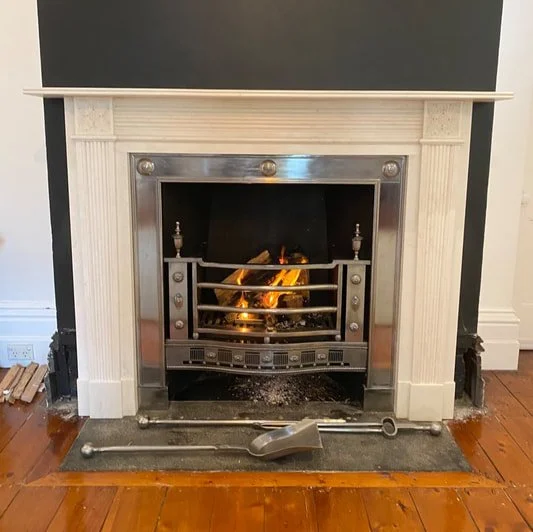

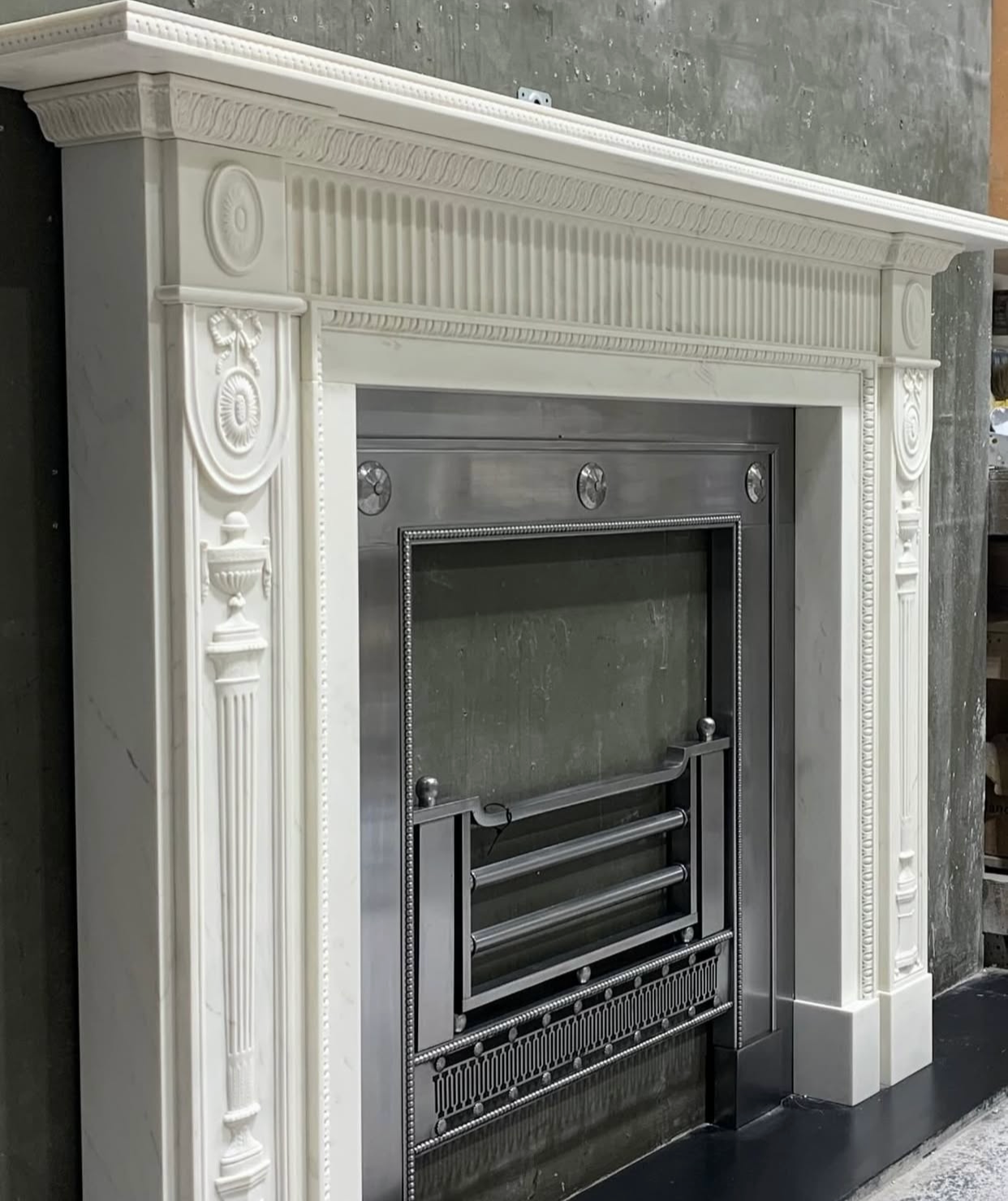

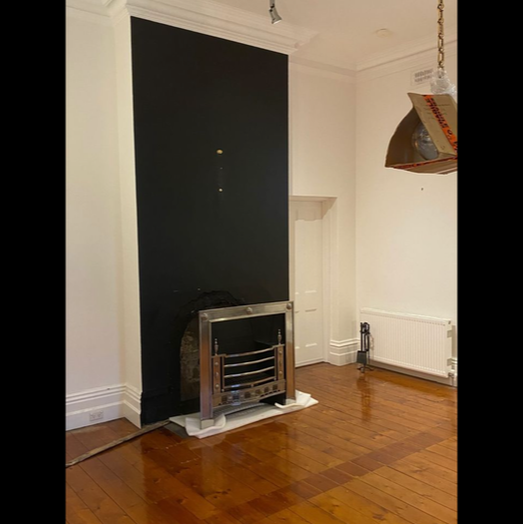

jamb. register grate and Pelham chimney piece.
photo ~ first lighting
a bricked up fireplace

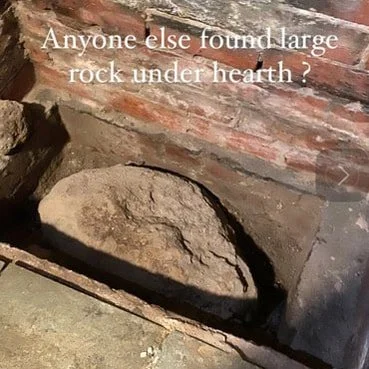

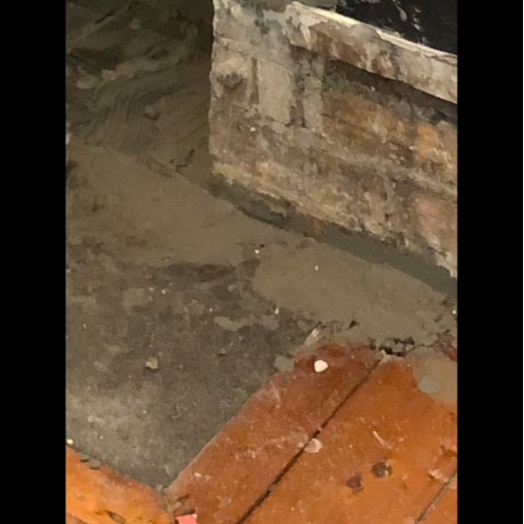

all victorian fireplaces Ive seen to date are filled with rubble from the original building stage. it was the way of drainage including under hearth this can be washed away from rain down chimney over 100 plus years, this one in great conditions. clean way any loose rubble and down a minimum 150mm to a firm hard stable base.
this step take out loose bricks re mortar this is done, at this stage so dropping can be collected with ease, once dry call in chimney sweep, this is also done at this stage so ash is cleaned away with ease, and not mix with rubble of stage one

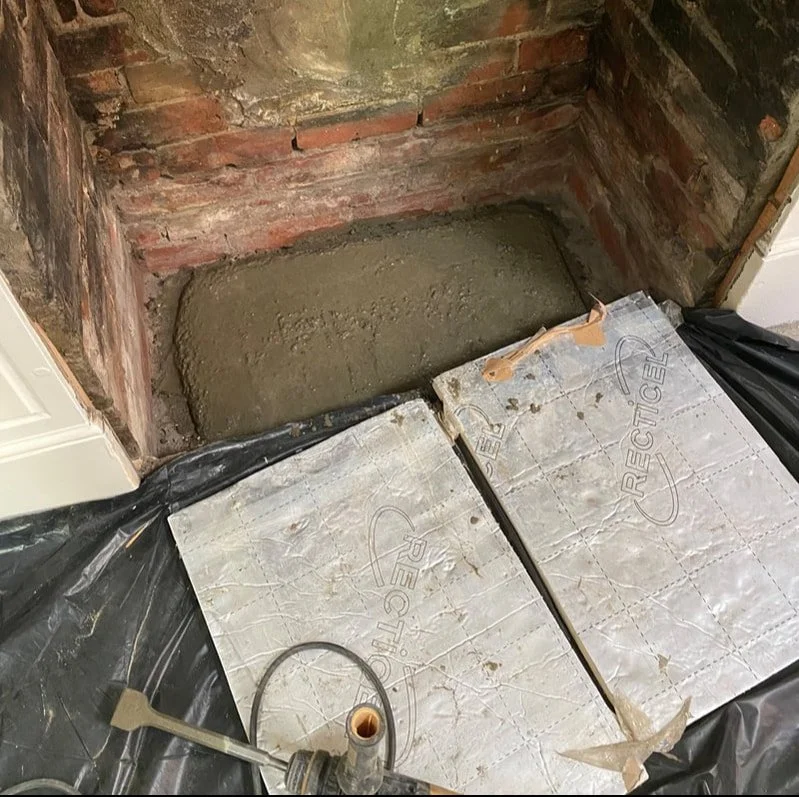

lay heath stone, ask for off cut to use so you can lay mortar to right height ~ with level from half stone, fill gaps behind skirting.
protect lighting this case - Mott

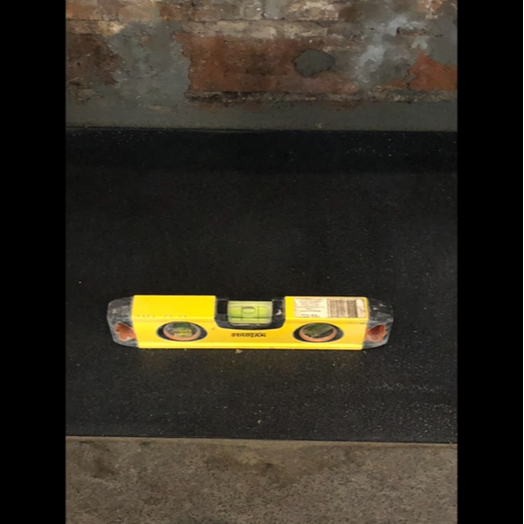

level stone
Arch brick work to change

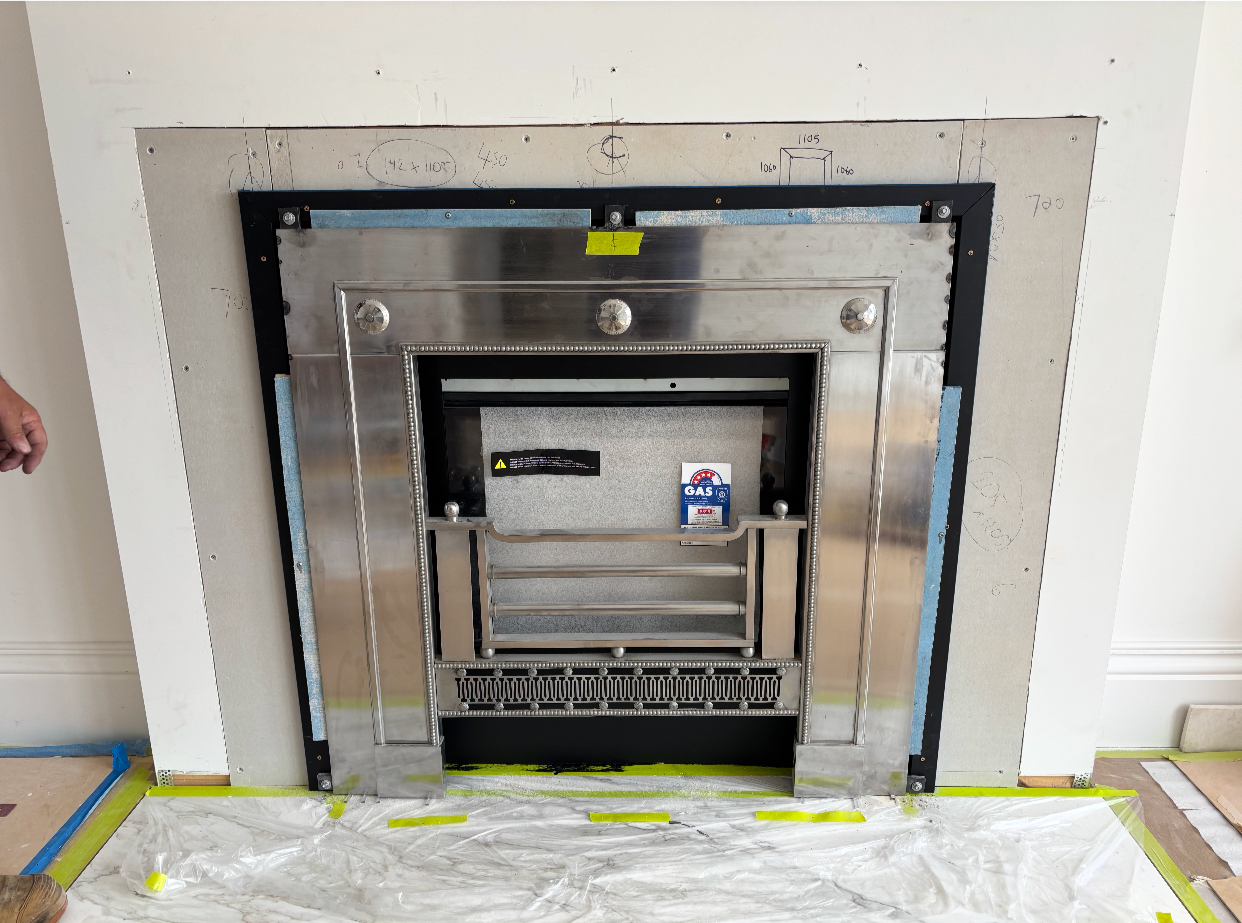

lintel square for register grate

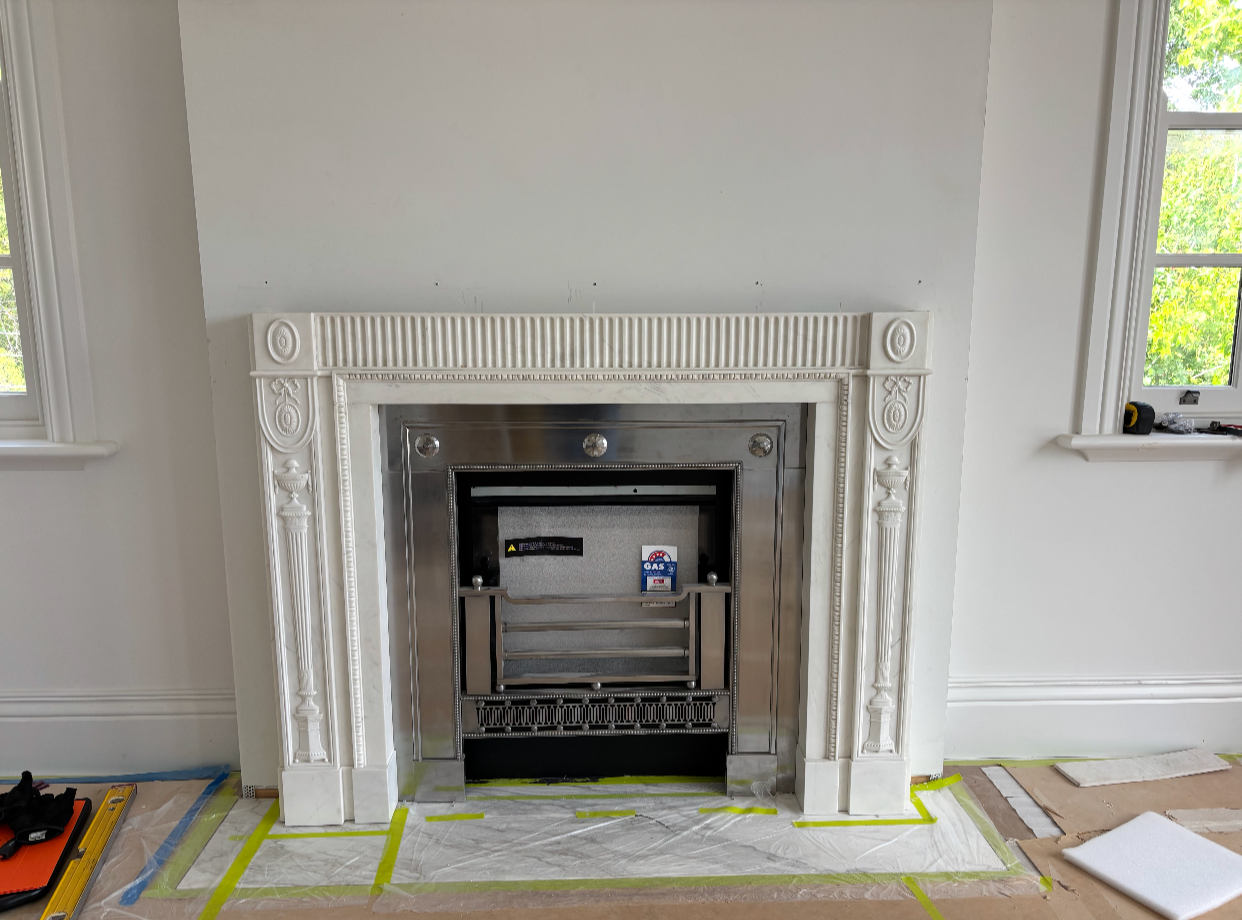

Ready for chimney piece
first lighting of your ~ jamb.
